C9115AXE-S

Description

Cisco Catalyst 9115AX Access Point, External Antennas; Wi-Fi 6; 4x4:4 MIMO, S Domain

Software

Cisco Unified Wireless Network Software Release 8.9 or later
Cisco IOS ® XE Software Release 16.11 or later

Supported wireless LAN controllers

Cisco Catalyst 9800 Series Wireless Controllers
Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller

802.11n version 2.0 (and related) capabilities

4x4 MIMO with four spatial streams
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g beamforming
20- and 40-MHz channels
PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support

802.11ac

4x4 downlink MU-MIMO with four spatial streams
MRC
802.11ac beamforming
20-, 40-, 80-, and 160-MHz channels
PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 DFS
CSD support

802.11ax

4x4 downlink MU-MIMO with four spatial streams
Uplink/downlink OFDMA
TWT
BSS coloring
MRC
802.11ax beamforming
20-, 40-, 80-, and 160-MHz channels
PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
802.11 DFS
CSD support

Integrated antenna

2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth
5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

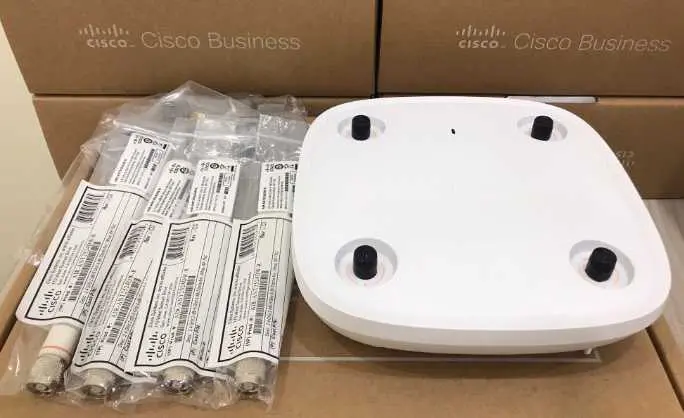

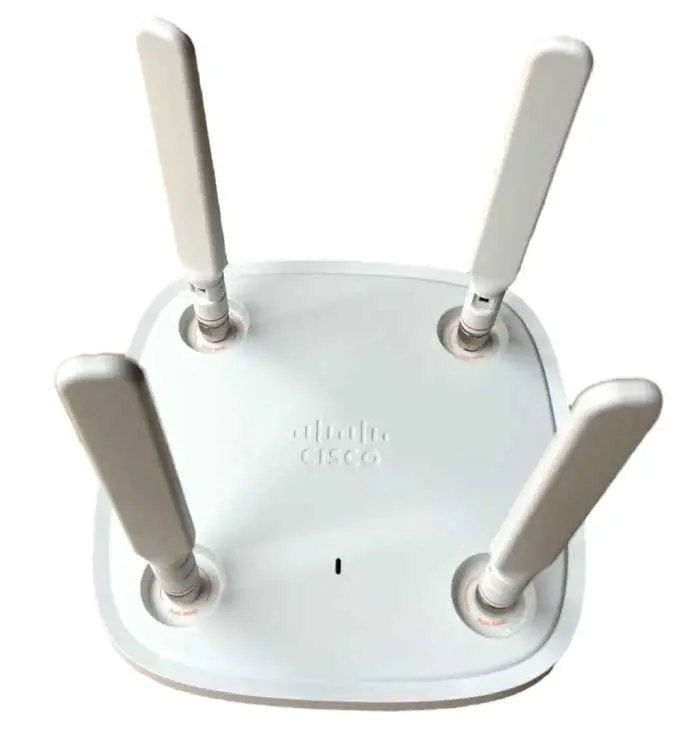

External antenna (sold separately)

Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Interfaces

1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
Management console port (RJ-45)
USB 2.0 (enabled via future software)

Indicators

Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (WxLxH)

Access point (without mounting brackets): C9115I: 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm), C9115E: 8.0 x 8.0 x 1.7 in. (20.3 x 20.3 x 4.3 cm)

Input power requirements

802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)
Cisco power injector, AIR-PWRINJ6=
802.3af PoE
Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)
Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off.

Environmental

Cisco Catalyst 9115AXE
Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
Operating temperature: -4° to 122°F (-20° to 50°C)
Operating humidity: 10% to 90% (noncondensing)
Operating altitude test: 40˚C, 9843 ft.
Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.

System memory

2048 MB DRAM
1024 MB flash

Available transmit power settings

2.4 GHz
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
-1dBm (0.79mW)
-4dBm (0.39mW)
5 GHz
23 dBm (200 mW)
20 dBm (100 mW)
17 dBm (50 mW)
14 dBm (25 mW)
11 dBm (12.5 mW)
8 dBm (6.25 mW)
5 dBm (3.13 mW)
2 dBm (1.56 mW)
-1dBm (0.79mW)
-4dBm (0.39mW)

Frequency band and 20-MHz operating channels

S (S regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
● 5.745 to 5.825 GHz; 5 channels
